Docking Station

• All-in-one stand-alone docking station designed for maximum testing efficiency and portability
• It tests up to four units simultaneously, reducing the testing time and gas usage
• With only two buttons, it’s simple to train workers how to use it for regular bump tests, occasional calibrations, or to deactivate detectors
• It can be optionally housed in a rugged Pelican© case or a wall-mountable metal enclosure
• Logs are stored on a USB flash drive which can easily be transferred to a computer for analysis
• Test 4 units at one time, up to 12 instruments in a minute
• Easy 1 button operation
• Robust rechargeable internal battery, up to 1500 tests before recharging
• Internal gas cylinder regulator and pressure gauge
• USB flash memory for bump test and event log storage
• Optional unit configuration and firmware updates via GCT Manager Software
• Rugged Pelican© case or Wall Mount Dock case
• No computer required to operate
• Size: Pelican Case Version: 20” × 16” × 7.5” (50.8 cm × 40.6 cm × 19.05 cm)
• Wall Mount MGC Dock Version: 17.75” × 12.00” × 6.5” (45.2 cm × 30.5 cm × 16.5cm)
• Information Stored: Bump/Calibration Logs, Individual monitor event logs, Firmware (unit and docking station) and Unit Configurations
• Unit Compatibility -Works with all MGC instruments
• Calibration Gas 58L or 116L gas cylinders; larger cylinder configurations available
• Unit Configuration/Firmware Updates
• In order to keep your fleet of gas detectors compliant with specific settings, we allow for the MGC Dock to program each unit during either bump testing or calibration
• The programmable fields are as follows: User ID, Calibration Interval, Bump Interval, Self-Test Interval, Low Alarm, High Alarm, Show Sensor Readings, Hide Bump Due LED and Hide Clock
• Event Data and Record Storage
• In addition to performing tests, unit configurations and firmware updates, the MGC Dock also stores important information about both the docking station and units tested
• All tests performed on the docking station can be accessed from either the USB directly or using the GCT Manager software
• Each bump test and calibration event is recorded and logged by date, time and serial number
• Along with the test records, the individual event logs from each unit are saved
• At the time of the test, the detector transmits its’ event log to the memory
• By default, the station will save the previous 10 event logs

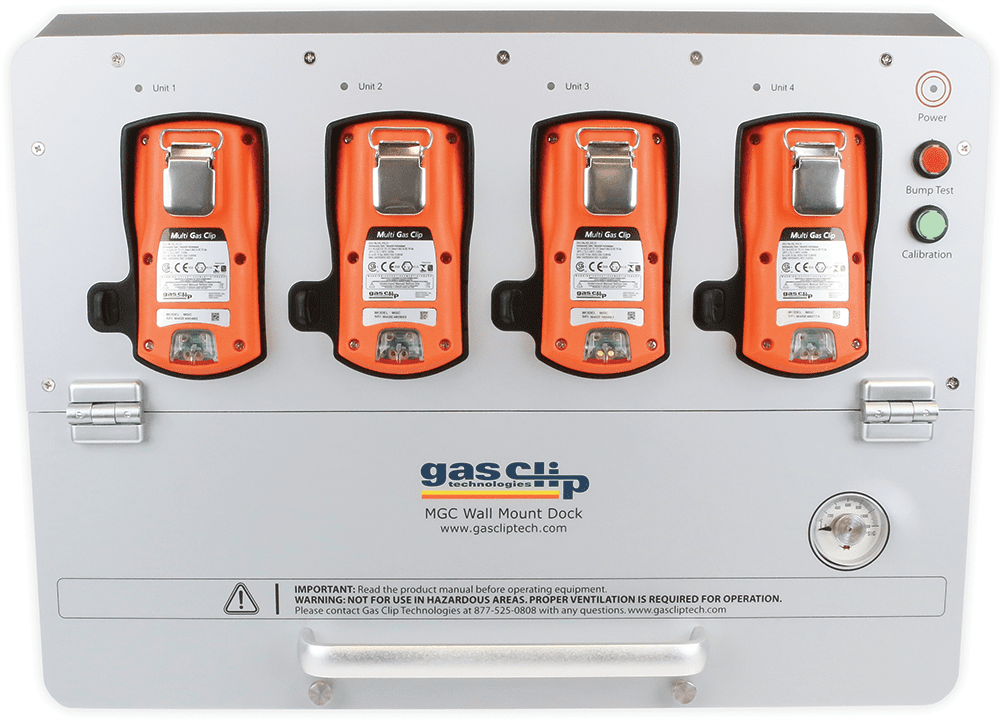

• Wall Mount MGC Dock: Gas Clip Technologies offers a wall mount solution for our MGC Dock
• Instead of being housed in a Pelican© case, we provide a slim cabinet type case that can be easily mounted on a wall
• This option can be selected at the time of order or can be ordered separately to convert your existing MGC Dock to a Wall Mount MGC Dock
• This option is a perfect fit for facilities or office environments
• Gas Clip Technologies GCT Manager software provides users the ability to communicate and program the MGC Dock or Wall Mount MGC Dock via IR Link or USB memory stick

• In order to communicate with an MGC Dock  system via infrared, an IR Link is required
• The Following is a full list of programmable features offered when  communicating with the MGC Dock or Wall Mount MGC Dock using the GCT Manager Software  via the IR Link
• Docking Station Location
• Number of Event Logs
• Auto Power-Off Time
• Gas Cylinder Expiration Date
• Gas Cylinder Lot #
• Gas Cylinder Concentration
• Feature Administration Controls
• Station Test Logs
• Individual Instrument Logs
• Inventory Report
• All IR Link Software


• System Requirements: Available for Windows based PCs (64 bit versons of Vista, 7, 8.x, 10)
• Users must also install Microsoft Net 4.0 software (Please use Chrome, Firefox, Opera or Edge to download)
